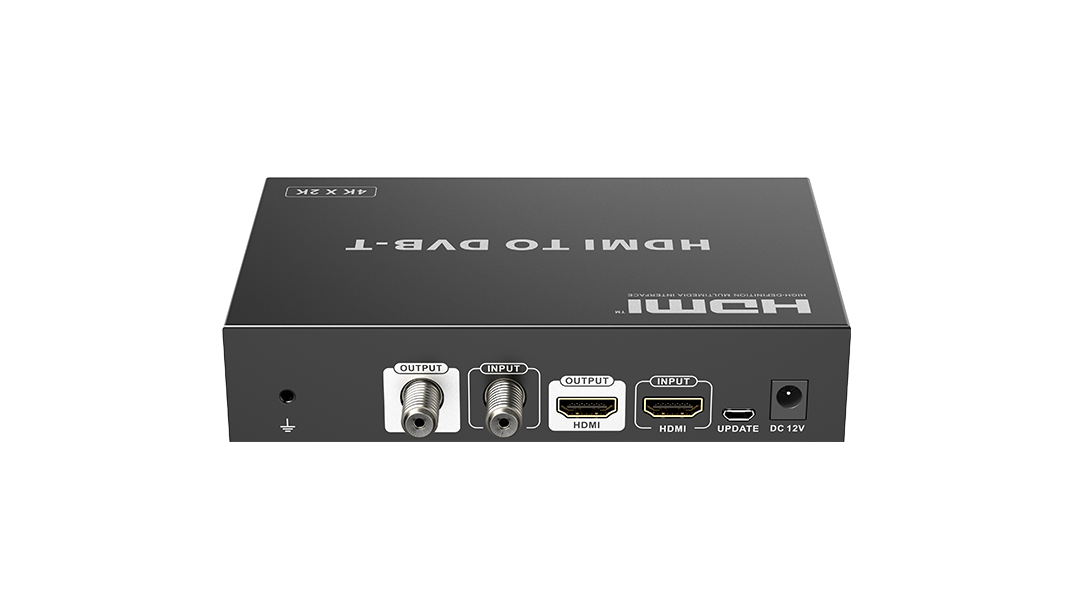

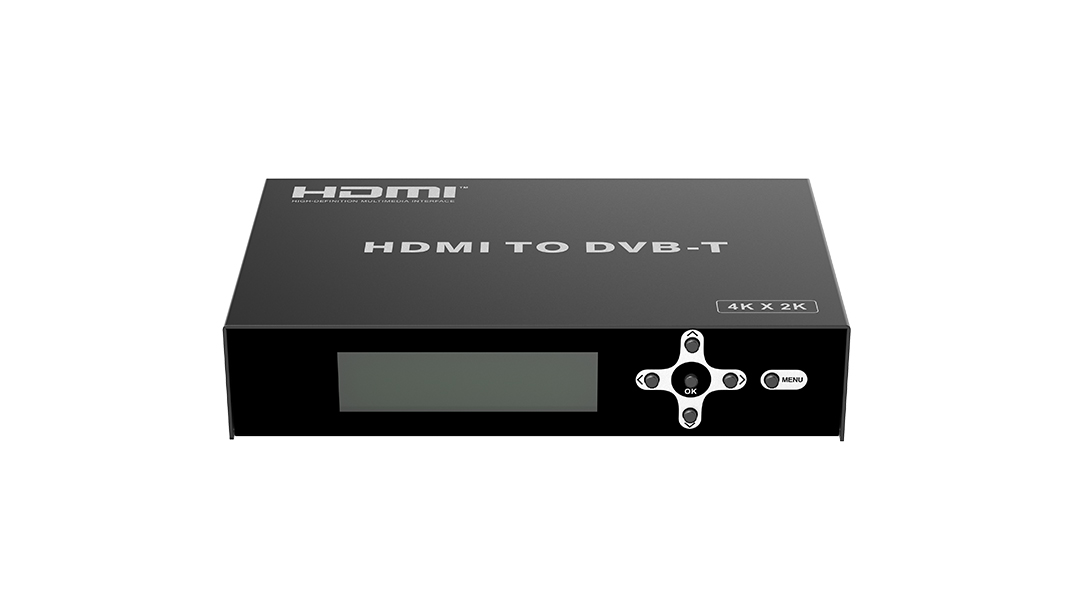

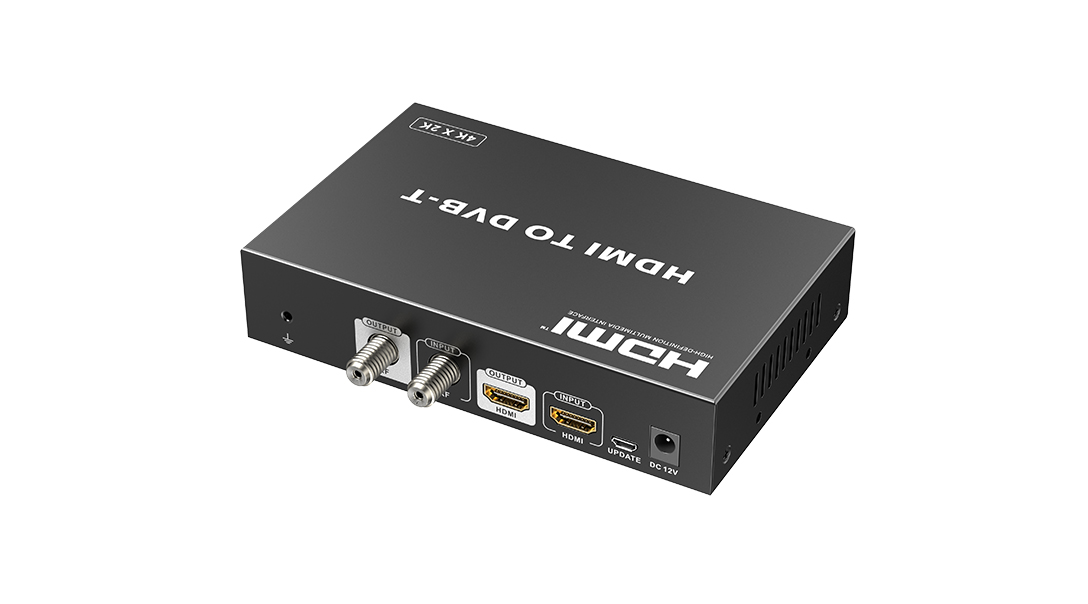

LKV679P-DVB-T-V2.0

HDMI™ To DVB-T Converter 3840x2160@60Hz

Features
1. Metal housing, stable and durable
2. Wall-mounted function, easy installation
3. Strong anti-noise and anti-interference ability
4. Support multiple modulators to be installed to distribute as many channels you need
5. Distribute one source to multiple displays with one modulator via CATV splitter
6. Support DVB-T digital high definition RF signal output
7. HDMI input signal resolution up to 3840x2160@60Hz, RF output signal resolution up to 3840x2160@30Hz
8. Lightning protection, surge protection, ESD protection
Introduction
Parameters
Downloads


HDMI Signal
HDMI 2.0,compatible HDCP 1.4/HDCP 2.2
HDMI DDC Signal
5Vp-p(TTL)
HDMI TMDS Signal
0.5~1.5Vp-p(TMDS)
Input HDMI Resolution Supported
480p@60Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080P@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz RF OUTPUT: 720p@50/60Hz, 1080P@24/25/30Hz, 3840x2160@24/25/30Hz
Video Encoding
H.264/H.265(4K)
Audio Encoding
MPEG2
Coaxial output Standard
DVB-T
Coaxial Cable reqired
RG6,RG7,RG11
Frequency
177.5 to 866MHz
Effective Bitrate
Max:24M bits
Insert Loss
+2dBm
RF output Wattage(TX)
-46dBm~-19dBm
RF Interface
British system(75Ω type F)
Delay Time
200~300ms(Depends on the decoding ability of receivers)
Audio format
MPEG(44.1kbps, 48kbps)
Power Supply
DC12V/1A
Product Consumption
<8W
Working temperature
~20~60℃
Stock temperature
~30~70℃
Relative Humidity
0~90%RH(No Condensation)
Product Dimension
158x115.3x33mm
Weight
476g
Color
Black
